2003 Harley-Davidson FLSTC Heritage Softail Classic Anniversary

[bahadori_m]

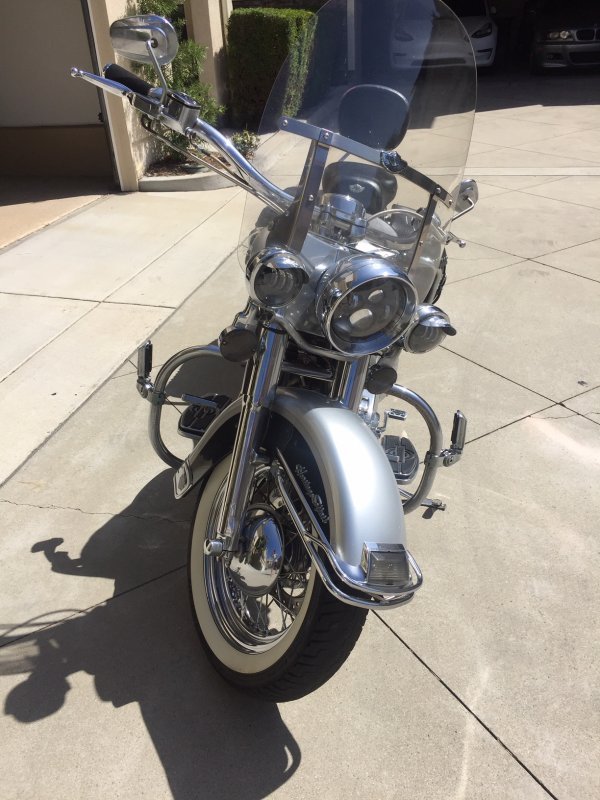

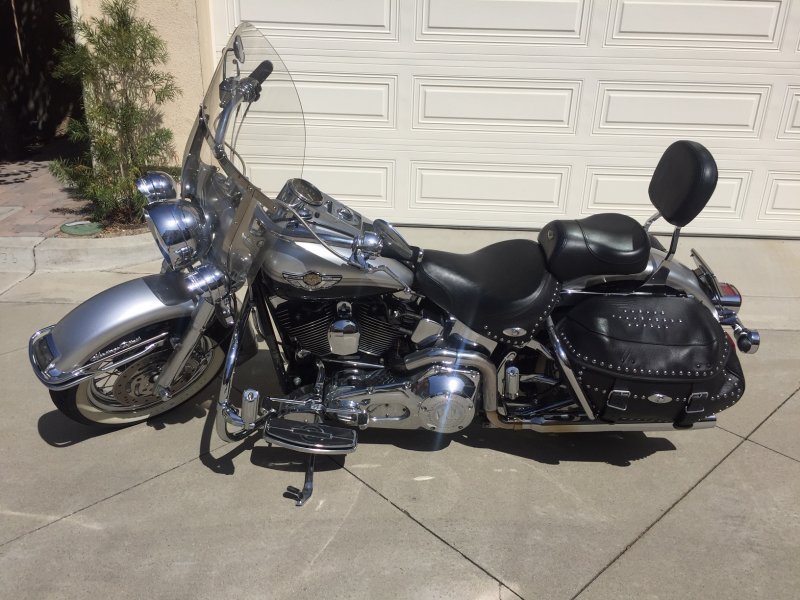

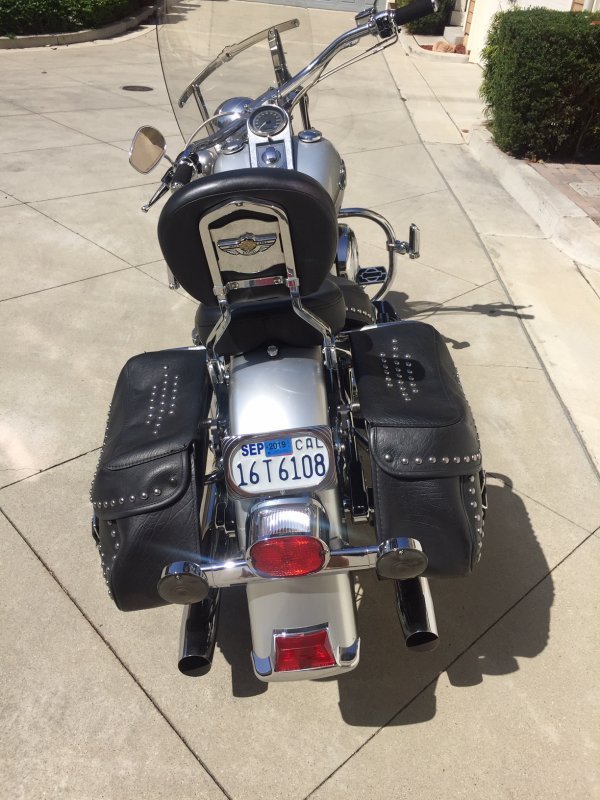

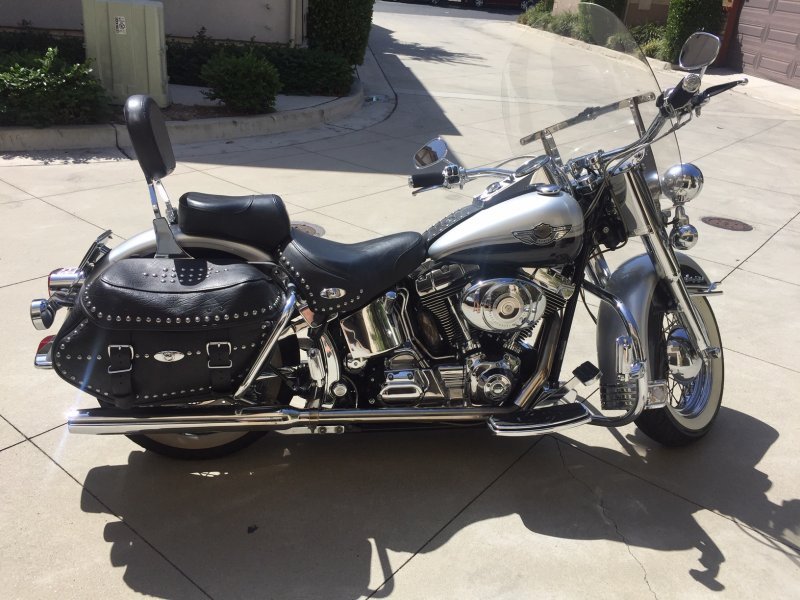

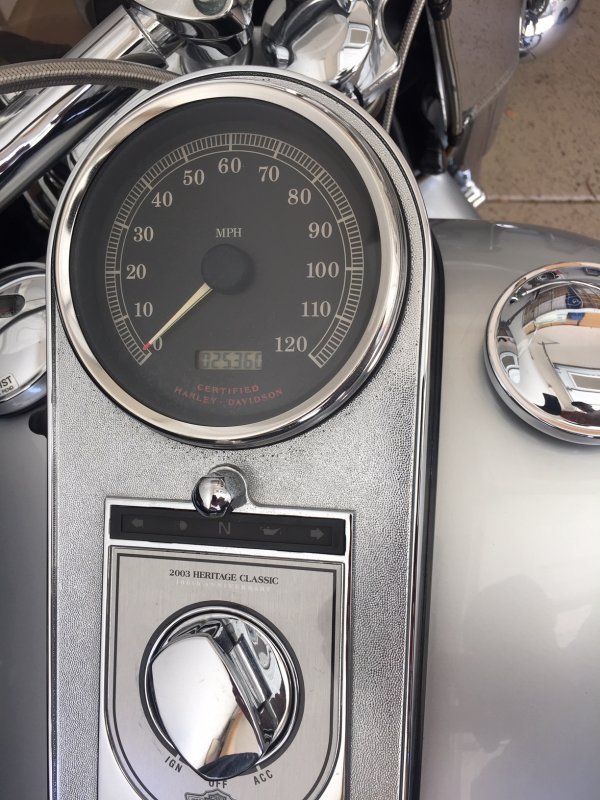

Too many extras to list! Always garaged and covered. LED Lights, see pics for all details, VIN Report available.
Styled to recall the past, the Heritage Softail® Classic is a bike for riders who want the comfort of a modern bike with the classic look of a 1940s hardtail. With the Twin Cam 88B™ engine and detachable windshield, the Heritage Softail® Classic is ready to tour or cruise. This bike takes riders back in time with features such as: a fat front fork, classic studded leather saddlebags, chrome-studded seat, full windshield, floorboards, large chrome headlamp with twin passing lamps, and Fat Bob fuel tank.
Key FLSTC Heritage Softail® Classic characteristics
-Rigid mount, 1450cc Twin Cam 88B™ balanced engine
-Black powdercoated engine with chrome covers
-Detachable king-size Lexan windshield
-1950s-style leather saddlebags with quick detach buckles
-Passenger backrest
-Touring handlebar
-Full FL front fender with chrome accents
-Chrome passing lamps
-Chrome-plated directional light bar
-Chrome hubcover
DIMENSIONS
Length 94.5 in. (2400.3 mm)
Seat Height (measure laden w/ 180 lb. rider) 25.4 in. (645.2 mm)
Seat Height (unladen) 27.4 in. (697.0 mm)
Ground Clearance 5.1 in. (129.5 mm)
Fork Rake 32.0 degrees
Trail 5.8 in. (147.3 mm)
Wheelbase 64.5 in. (1638.3 mm)
Tires: Dunlop Harley-Davidson Series
Front – D402F MT90B16 72H
Rear – D401 150/80B16 71H
Fuel Capacity (includes 0.5 gal. reserve) 5.0 gal. (18.9 L)
Reserve Fuel Capacity (warning light at aprox. 1.0 gal. for ESPFI models) 0.5 gal. (1.9 L)
Oil Capacity 3.5 qts. (3.3 L)
Dry Weight 699.0 lbs. (317.0 kg)
Vehicle Weight In Running Order (unladen) 738 lbs. (335.0 kg)
Gross Vehicle Weight Rating 1160.0 lbs. (527.0 kg)
ENGINE
Engine 45º Air-cooled Twin Cam 88B™ (balanced)
Valves Pushrod-operated overhead valves; w/ hydraulic
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 x 4.0 in. (95.25 x 101.6 mm)
Displacement 88 cu. in. (1450 cc)
Compression Ratio 8.9:1
Fuel System2 Carburetion or
Electronic Sequential Port Fuel Injection (ESPFI)
(single runner, 45 mm throttle bore ESPFI)

DRIVETRAIN
Primary Drive Double row chain, oil bath,
mechanical tensioner, 36/25 ratio
Final Drive Gates carbon fiber reinforced
polychain belt, 32/70 ratio
Clutch 9-Plate, wet
Transmission Five-speed
Overall Ratio:
1st 10.110
2nd 6.958
3rd 4.953
4th 3.862
5th 3.150

CHASSIS
Frame Mild steel, rectangular section backbone
w/ twin down-tubes
Swing Arm Triangular “hard tail” style
Front Fork 41.3 mm, Telescopic w/ “beer can” covers
Wheels 16 in. laced front,
16 in. laced rear
Brakes:
Caliper type Dual-piston front and rear
Rotor type (diameter x width): Patented, Uniform Expansion Rotors
Front 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension travel:
Front Wheel 5.10 in. (129.54 mm)
Rear Wheel 4.30 in. (109.22 mm)
PERFORMANCE
Engine Torque (per SAEJ607)3:
North America 85 ft. lbs. @ 3000 rpm (115.0 NM @ 3000 rpm)
International 81 ft. lbs. @ 3100 rpm (110.0 NM @ 3100 rpm)
Lean Angle (per SAEJ1168):
Right 28.9 degrees
Left 28.1 degrees

ELECTRIC
Battery Sealed, maintenance-free, 12-volt, 19 amp-hour, 270 cca
(per Battery Council International rating)
Charging 37-amp permanent magnet alternator w/ solid-state regulator
(481 watts @ 3,000 rpm, 494 watts peak)
Starting 1.2 kw electric w/ Bendix-type engagement
Lights: (As per country regulation)
Headlamp Quartz halogen 55-watt low beam, 60-watt high beam
Tail/stop lights 8w/28w (int’l: 5w/21w)
Turn signal lights (self-canceling) 28w (int’l: 21w)
Passing/fog lamps Standard
Front fender runing light Standard
Indicator lamps High beam, neutral, oil, turn signals,
and security system (optional)4
